Introduction
Strip filter drain series prefabricated drains are engineered by fully encasing a high-strength, high-flow polyethylene core with a geotextile filter fabric. The fabric features a securely stitched seam to block soil from entering the flow channels, while still permitting water to enter the drain core freely from every direction.
With an optimized void space for efficient water collection, it products deliver a cost-effective, sustainable, and performance-oriented alternative to traditional perforated pipe and stone systems.
Specifications
Technical Characteristics
|
PRODUCT GRADE |
Strip Drain 18 |
Strip Drain 18 |
Strip Drain 18 |
|
DIMENSIONAL CHARACTERISTICS |
|
|
|
|
Product Thickness(mm) |
18 |
18 |
18 |
|
Product Depths(mm) |
100 |
200 |
300 |
|
Roll Lengths(m) |
50 |
50 |
50 |
|
GEOTEXTILE |
|
|
|
|
Polymer |
PET |
PET |
PET |
|
Tear Strength(kN) |
0.35 |
0.35 |
0.35 |
|
Permeability (cm/s) |
K×(10-1～10-3) K=1.0～9.9 9.6×10-2 |
||
|

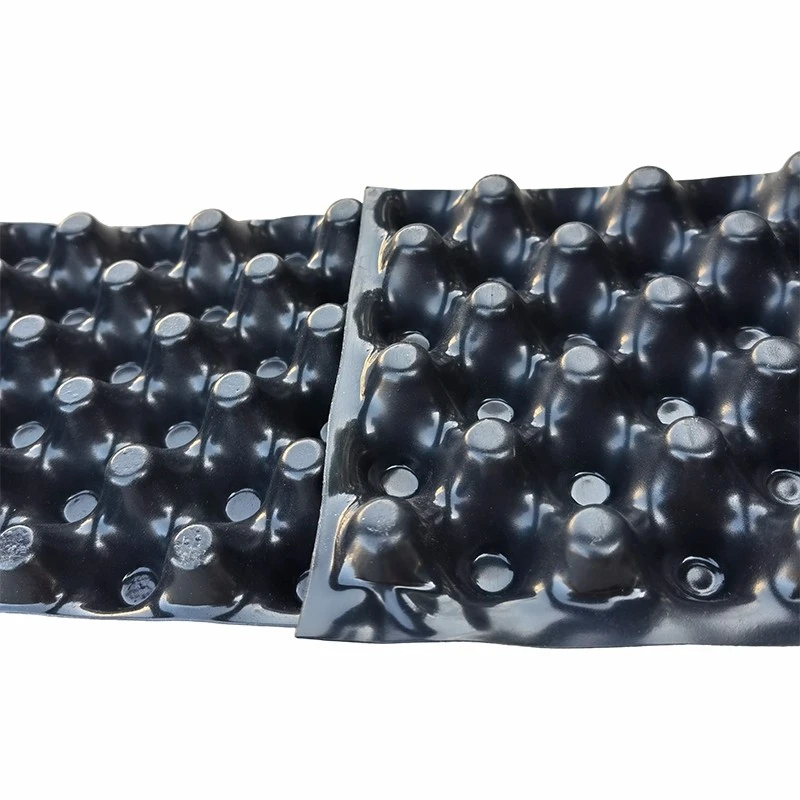

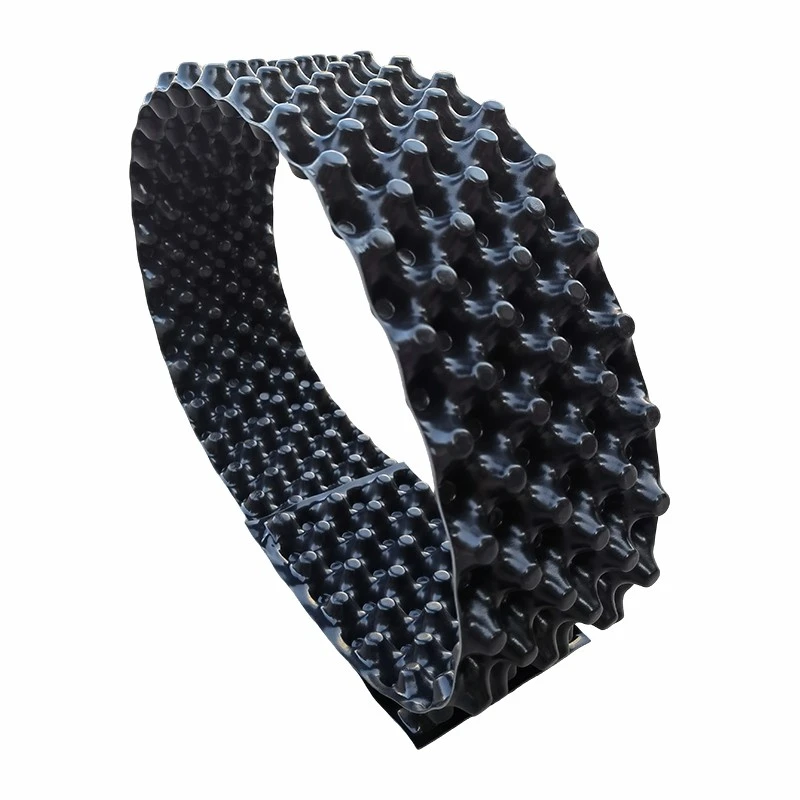

CUSPATED CORE |
|
|
|
|
Polymer |
HDPE |
HDPE |
HDPE |
|
Compressive Strength (kPa) |
200 |
200 |
200 |
|
Flow Rate @0.05 (L/s/m width) |
1.1 |
1.1 |
1.1 |
Product detail
Strip filter drain of applications include:
Wall Applications
Blindside Wall
Landscape Retaining Wall
Civil Retaining Wall
Shoring Wall
Landscape & Recreational Applications
Golf Course
Lawn & Grass Areas
Drainage & Earth Retention Applications
Cut-Off Drains
Roadway Edge Drain
|
Original |
Jiangsu, China |
|
Certification |
ISO9001. |
|
Price |
Negotiable |
|
Material |
Strip Drain 18 |
|
Payment term |
T/T,Western Union,L/C,Paypal |
|
Delivery date |
Negotiable |
|
Packing |
export standard |
|
Market |
Australia, Southeast Asia, Middle East, India and Pakistan, Europe, South America, etc |
|
Warranty |
1 year |
|
MOQ |
1000m |
Features/Equipment characteristics
Product Structure

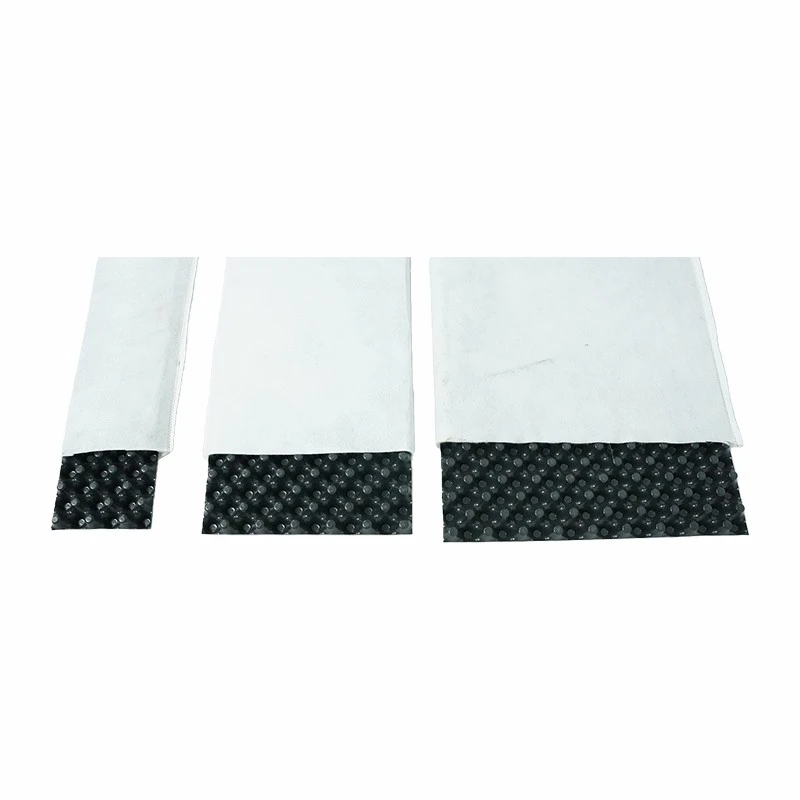

The strip filter drain is an engineered geospacer drainage product featuring a robust, formed polymeric core fully encapsulated in a laminated geotextile fabric.
Key Function
It serves as a high-performance alternative to conventional drain pipe and stone systems, enabling efficient subsurface water collection and conveyance.
Performance Advantage
Designed as a cost-effective and engineered solution, it effectively manages subsurface water ingress from both primary and secondary directions.
FAQ
1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we would like to send sample from our Chinese factory.
3. What kind of files do you accept for printing?
PDF, Core Draw, high resolution JPG .
4. Can you do the design for us?
Yes. We have a professional team having rich experience in design and manufacturing.
5. How long can I expect to get the sample?
3-5 working days for samples.
